Aleko Single Swing Gate Operator GG850 AC/DC Solar Kit 50W GG850SOL-AP Single Swing Gate Operator
Aleko Single Swing Gate Operator GG850 AC/DC Solar Kit 50W GG850SOL-AP Single Swing Gate Operator
Aleko Single Swing Gate Operator GG850 AC/DC Solar Kit 50W GG850SOL-AP Single Swing Gate Operator
Aleko Single Swing Gate Operator GG850 AC/DC Solar Kit 50W GG850SOL-AP Single Swing Gate Operator
Aleko Single Swing Gate Operator GG850 AC/DC Solar Kit 50W GG850SOL-AP Single Swing Gate Operator

Aleko Single Swing Gate Operator GG850 AC/DC Solar Kit 50W GG850SOL-AP

Aleko Single Swing Gate Operator GG850 AC/DC Solar Kit 50W GG850SOL-AP

Product Description

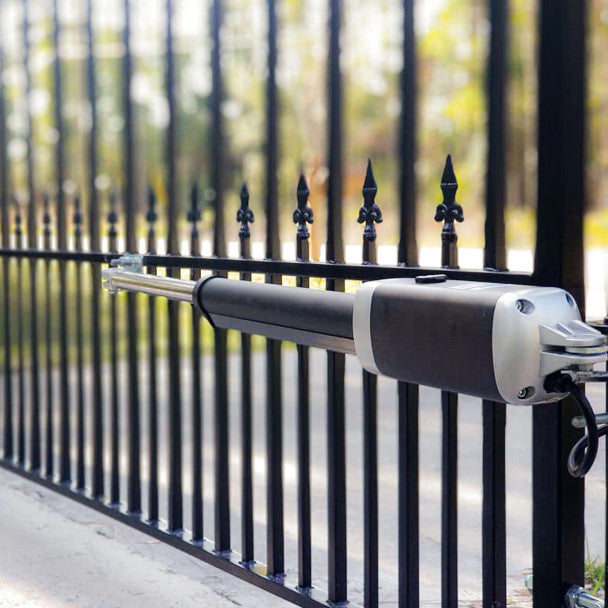

ALEKO GG850 Single Swing Gate Operator is designed for residential and commercial applications. It is aimed to improve your comfort level and it allows you to stay warm and dry in your vehicle. This Single Swing Opener will handle dual swinging gates up to 18 ft in length and weighing up to 850 lb. ALEKO GG850 has powerful 24VDC motor, which provides exceptional starting torque and feature soft start and stop operation. This promotes longer gate and operator life, as well as dependable performanc

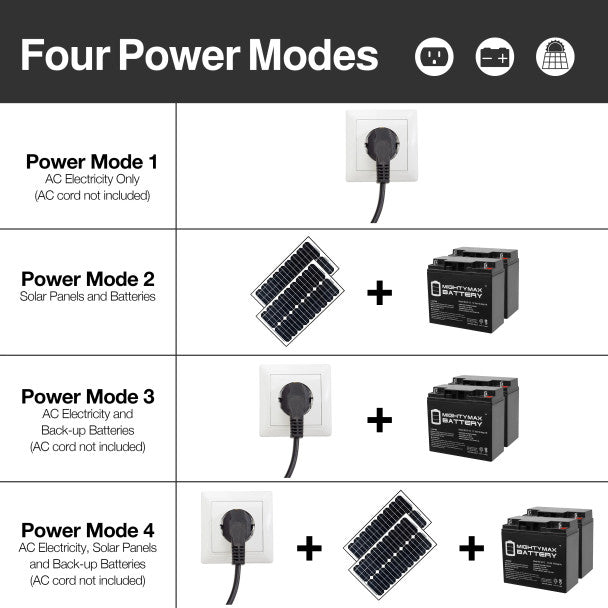

A utility backup battery is available for purchase in case of power loss.

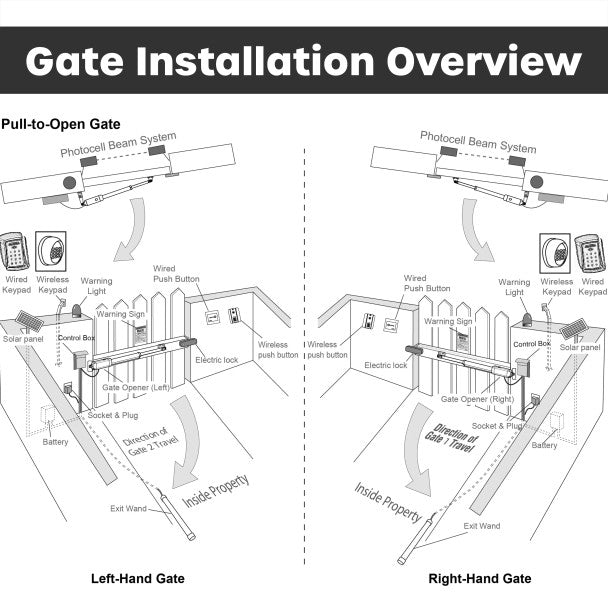

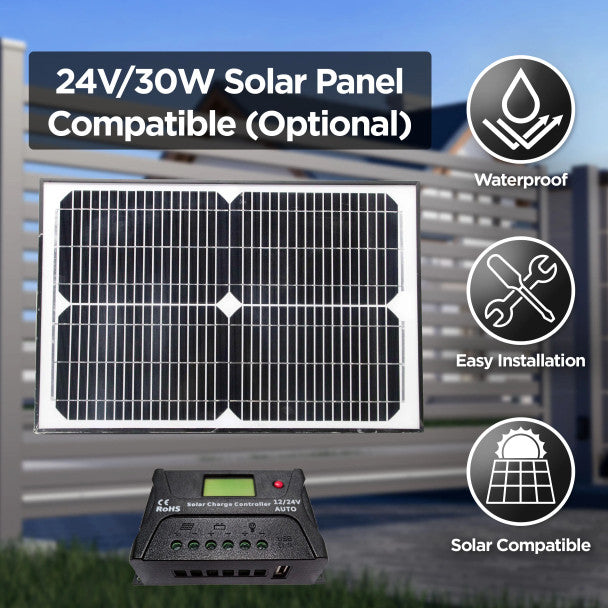

To simplify installation, ALEKO GG850 may be installed with low-cost, low-voltage wiring or in remote locations using our optional 10W, 20W or 30W Solar Panels.

Product Features

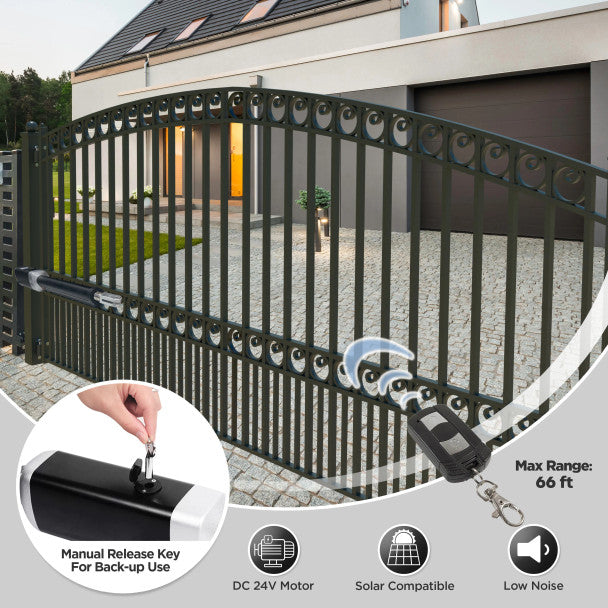

  • Access your gates through remote control or keypad
  • Smooth and soft start and stop function
  • Emergency Release key in case of power failure
  • Dual/Single gate running mode
  • Optional master and slave gate running
  • Adjustable opening/closing interval between master and slave gate
  • Stop/Reverse in case of obstruction during gate opening/closing
  • The force of the motor can be programmed
  • Optional photocell protection (not included)
  • Built in adjustable auto-close (programmable from 0-99 sec)
  • Digital display indicates the running situation and setting menu
  • Reliable electromagnetic limit switches improve adjustment of the 'open' and 'close' position

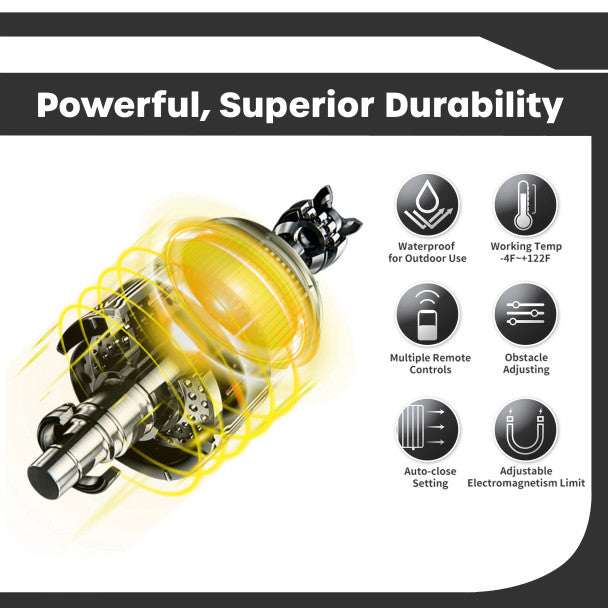

  • Motor: 24 V DC, 80W actuator
  • 5A current Power supply: 110V/60Hz (or 220V/50Hz)
  • Actuator speed: 1.6 cm/sec (0.63 inch/sec)
  • Actuator travel: 400mm (15.75 inches)
  • Max Weight gate: 300 kg (850 lb)
  • Max Width gate: 9 ft each
  • Open/closing running time: programmable (from 0 to 99 sec)
  • Auto-closing duration: programmable (from 0 to 99 sec)
  • Ambient temperature: -22C- +55C Protection class: IP44

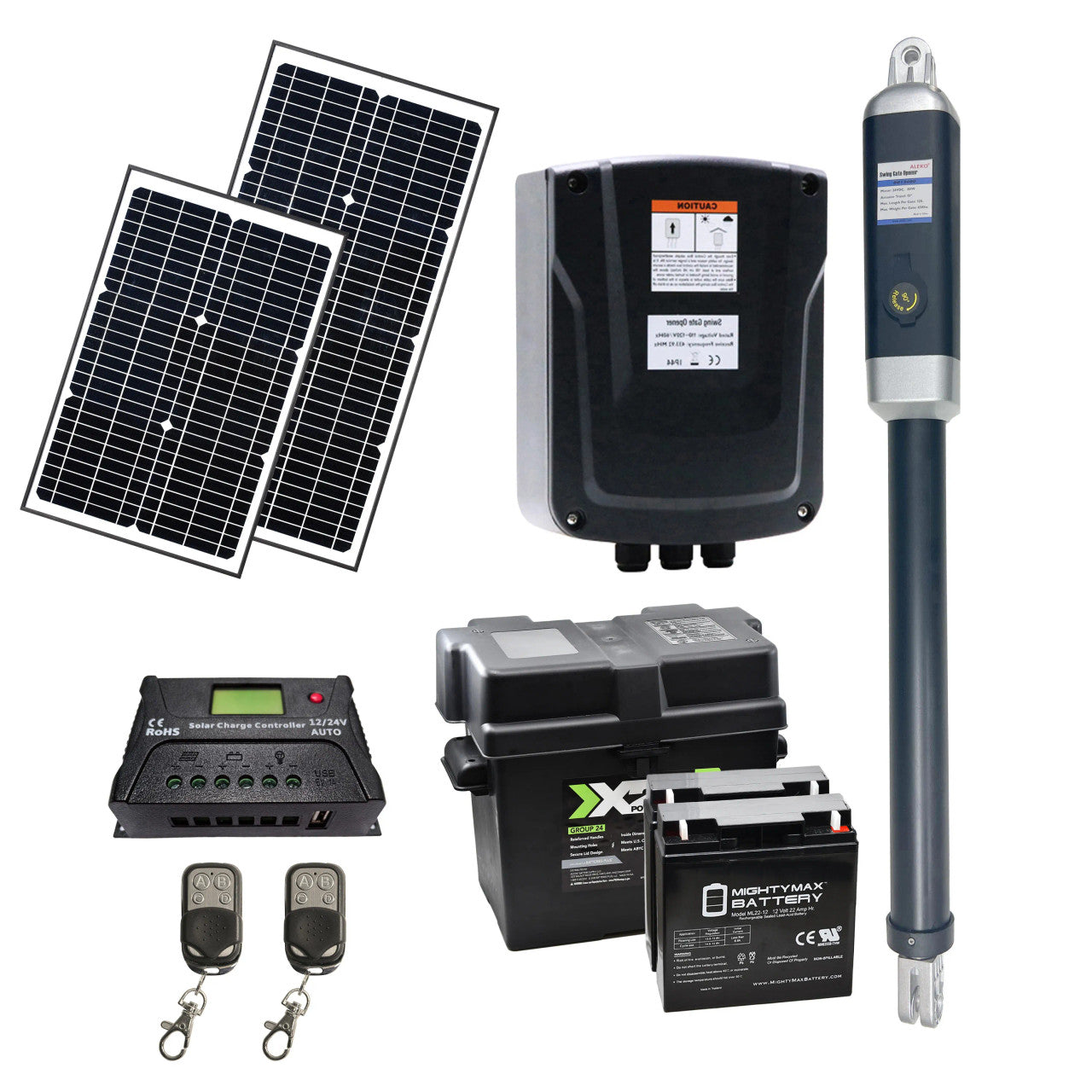

Package Includes

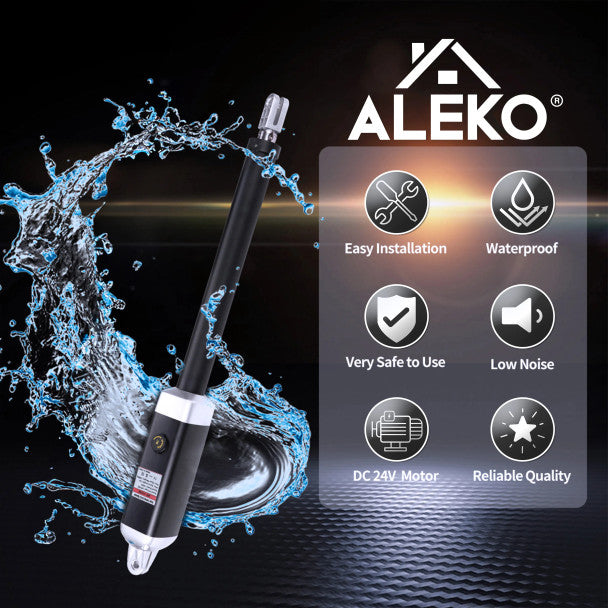

  • 1 (One) Actuator
  • 1 (One) Control Box
  • 2 (Two) 8 1/2" x 11" Warning Signs
  • 2 (Two) Release key
  • 2 (Two) 433MHz remotes LM122
  • 1 (One) ALEKO 30W 24V Solar Panel - 1 (One) ALEKO 20W 24V Solar Panel - 1 (One) ALEKO LM118 24V Solar Charge Controller for Solar Panels

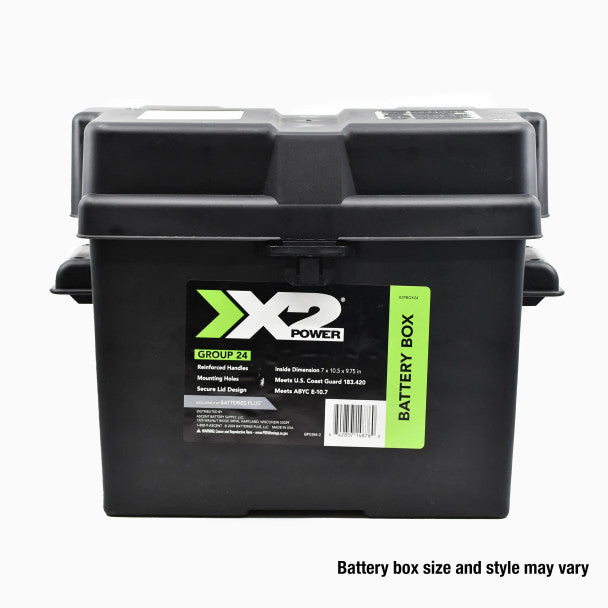

  • 2 (Two) 18AH Batteries - 1 (One) Battery box (shape and colors may be vary) - 1 (One) Set of accessories - 1 (One) User Manual with step by step installation instructions
  • Wire IS NOT INCLUDED

Solar panel mounting hardware not included.
