Product Description

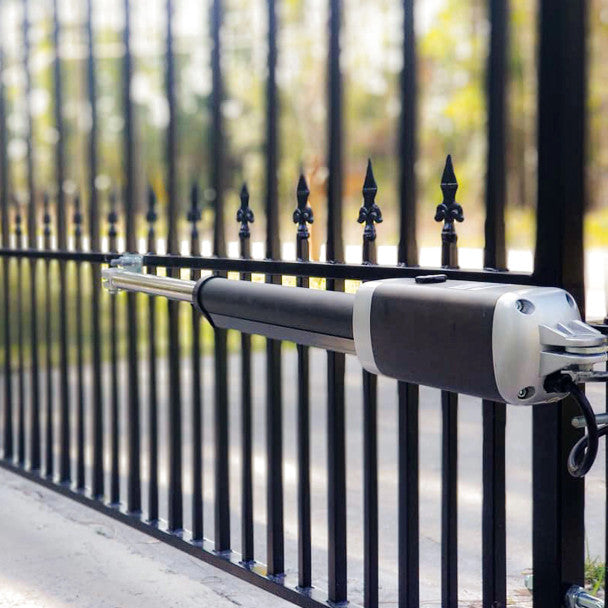

ALEKO GG450 Single Swing Gate Operator is designed for residential/commercial applications. Stay warm and dry in your vehicle. This Single Swing Opener will handle single swinging gate up to 18 ft in length and weighing up to 450 lb. ALEKO® GG450 has powerful 24VDC motor, which provide exceptional starting torque and feature soft start/stop operation. This promotes longer gate and operator life, as well as dependable performance.

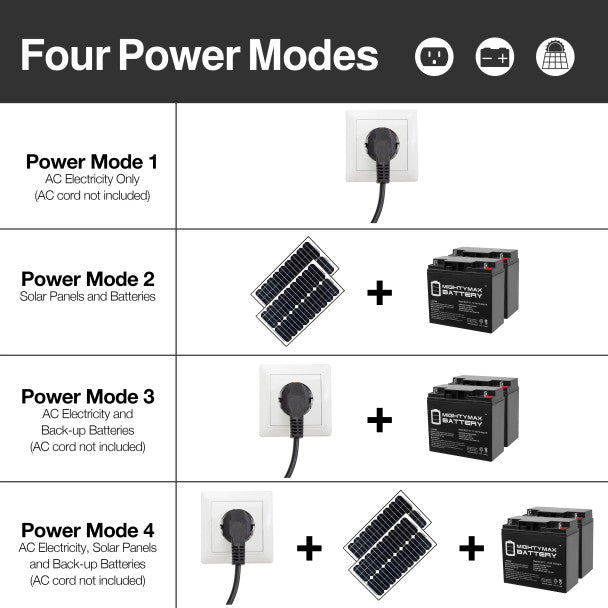

No power? No problem!

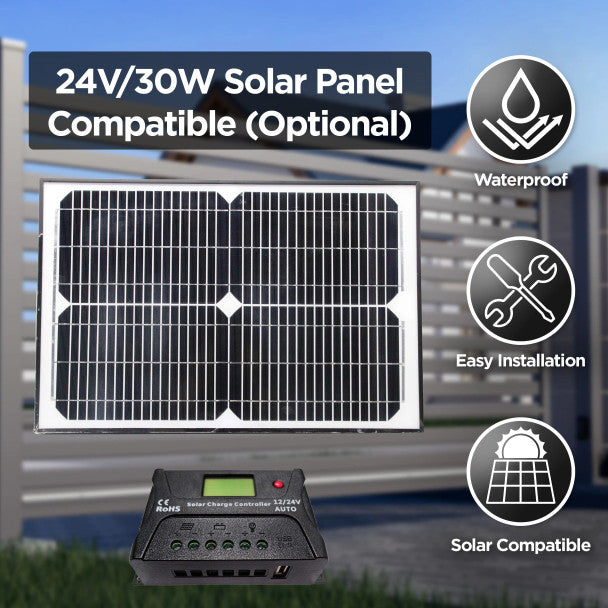

A utility backup battery is available for purchase in case of power loss. To simplify installation, ALEKO GG450 Single Swing Gate Operator may be installed with low-cost, low-voltage wiring or in remote locations using our optional 10W and/or 20W Solar Panel.

Product Features

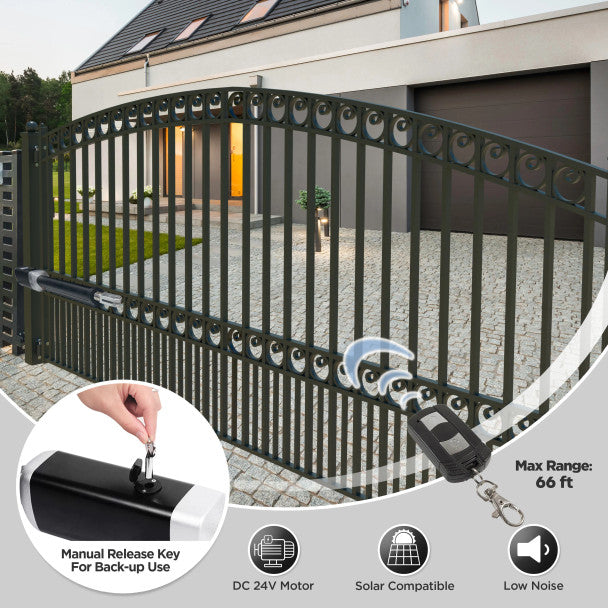

  • Access your gates through remote control or keypad
  • Smooth and soft start and stop function
  • Emergency Release key in case of power failure
  • Dual/Single gate running mode
  • Optional master and slave gate running
  • Adjustable opening/closing interval between master and slave gate
  • Stop/Reverse in case of obstruction during gate opening/closing
  • The force of the motor can be programmed
  • Optional photocell protection (not included)
  • Built in adjustable auto-close (programmable from 0-99 sec)
  • Digital display indicates the running situation and setting menu
  • Reliable electromagnetic limit switches improve adjustment of the 'open' and 'close' position
  • Motor: 24V DC, 50W per actuator, 2A current
  • Power supply: 110V/60Hz (220V/50Hz - not included)
  • Actuator speed: 1.6 cm/second (5/8 inch/second)
  • Actuator travel: 385mm (15 3/4 inches)
  • Max Weight of each gate panel: 300 kg (650 lb)
  • Max Width of each gate panel: 9 ft
  • Auto-closing duration: programmable (from 0 to 99 seconds)
  • Ambient temperature: -22C(-4F) ~ +55C(+122F)

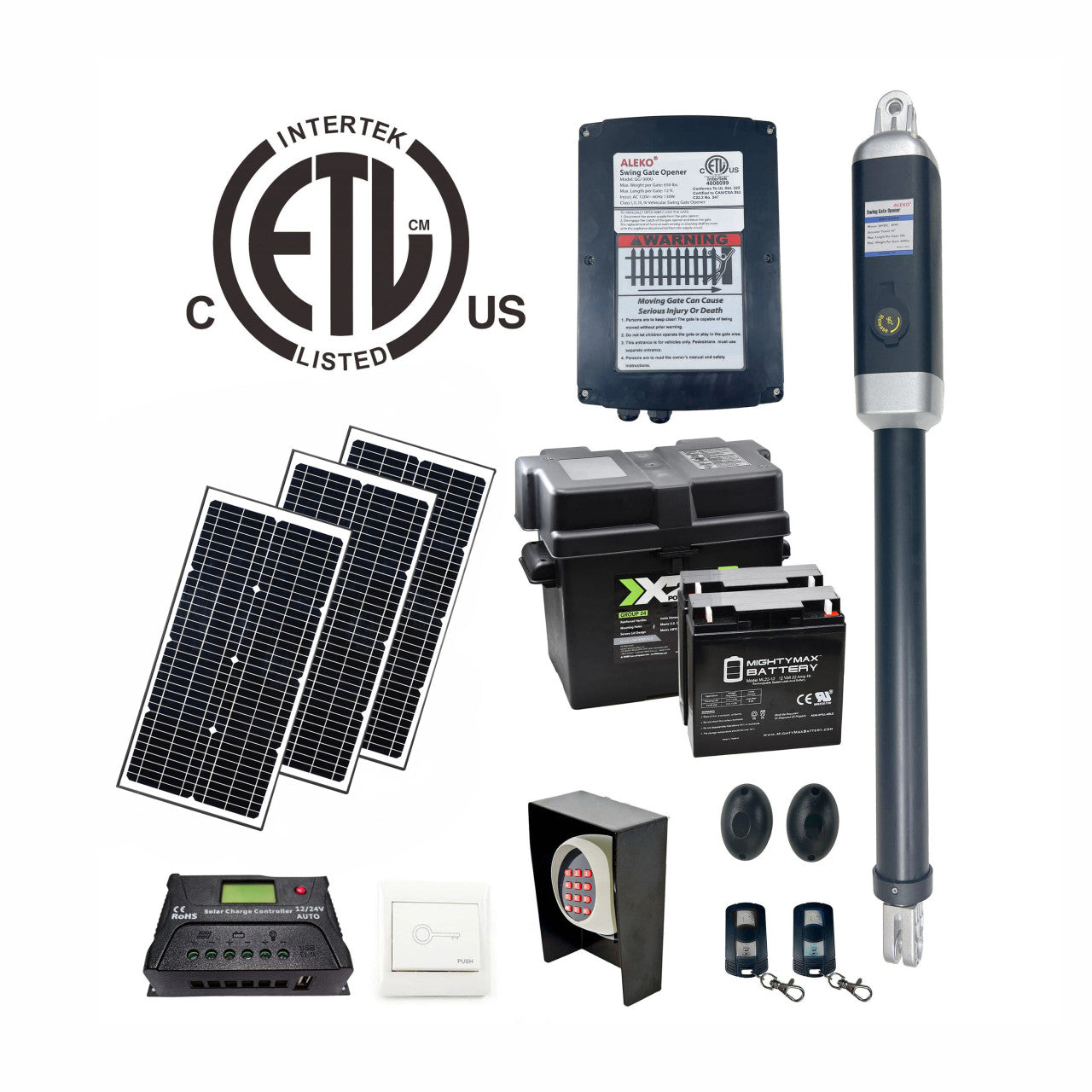

Package Includes

  • 1 (One) Actuator
  • 1 (One) Control Box
  • 2 (Two) 8 1/2" x 11" Warning Signs
  • 2 (Two) Release key
  • 2 (Two) 433MHz remotes LM122
  • 1 (One) Set of ALEKO 20W 24V Solar Panel + ALEKO 10W 24V Solar Panel
  • 1 (One) ALEKO LM118 24V Solar Charge Controller for Solar Panels
  • 1 (One) Set 2x12AH Batteries LM125(2x12AH)
  • 1 (One) Wireless Keypad LM172
  • 1 (One) Keypad metal cover
  • 1 (One) Push button LM147, wired
  • 1 (One) Set of Photocell LM102, wired

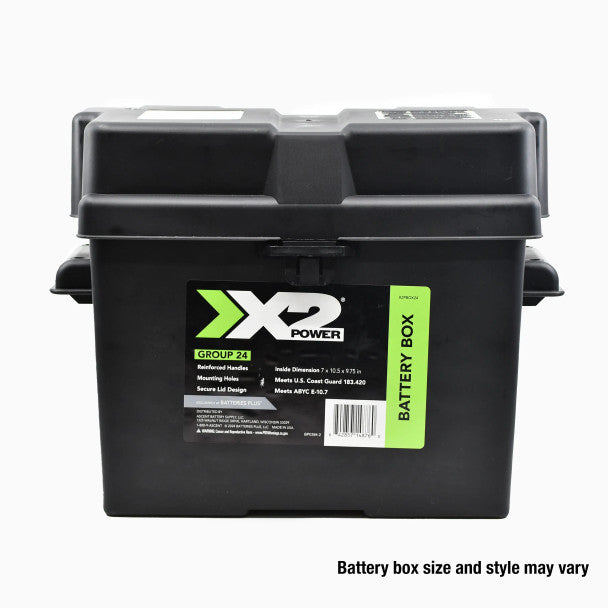

  • 1 (One) Battery box (shape and colors may be vary) for 2x12AH batteries
  • 1 (One) Set of accessories and mounting hardware for easy installation
  • 1 (One) User Manual with step by step installation instructions
  • Wire is not included



Solar panel mounting hardware not included.
