Aleko Dual Swing Gate Operator GG1300 AC/DC Back-up Kit ACC2 GG1300BACK-AP Dual Swing Gate Operator

Aleko Dual Swing Gate Operator GG1300 AC/DC Back-up Kit ACC2 GG1300BACK-AP

  • Save $80

Aleko Dual Swing Gate Operator GG1300 AC/DC Back-up Kit ACC2 GG1300BACK-AP


Product Description

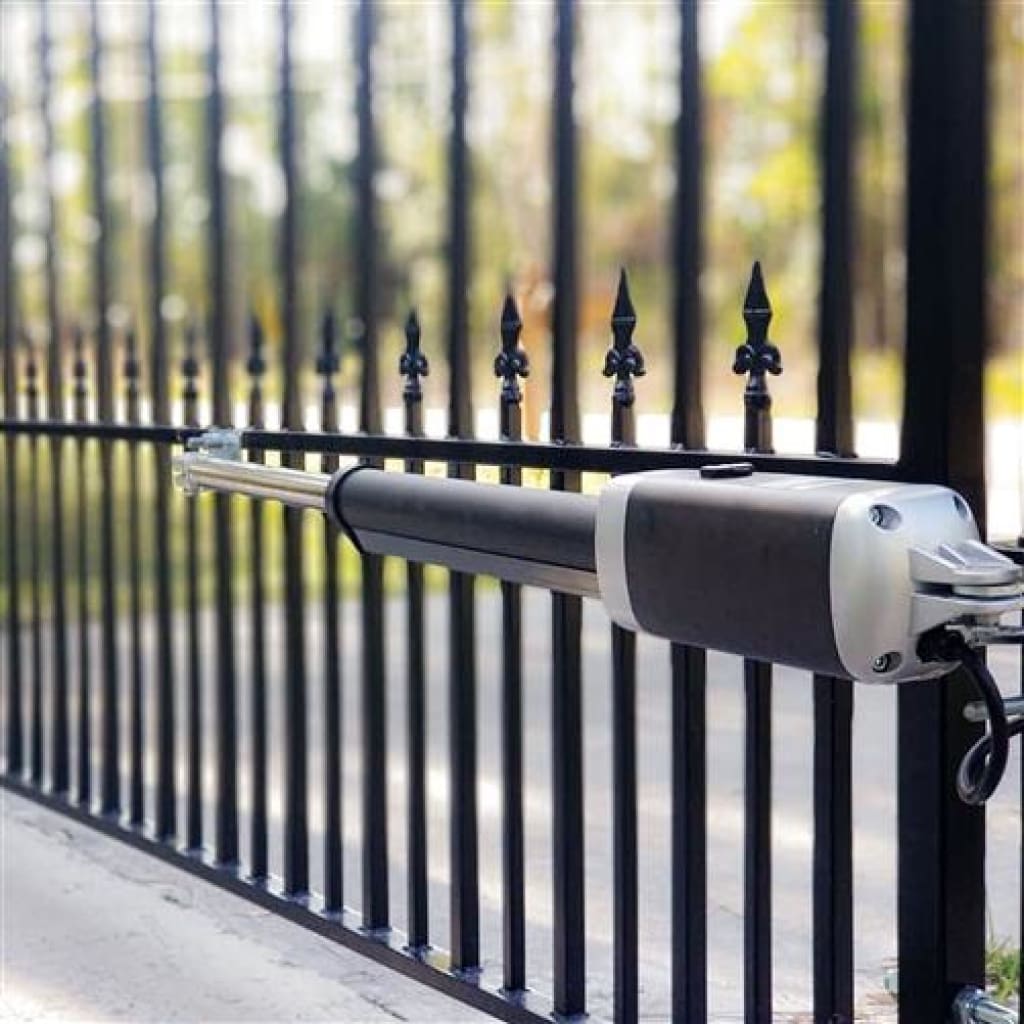

GG1300 for Dual Swing Gate is a benefit to the residential and commercial applications. It applies remote usage and avoids manual operation that keeps you calm and dry inside your vehicle. ALEKO GG1300 swing gate opener is having a 24V DC motor which regulate the opener. It can resist gates weighing up to 1300 lbs and length up to 20 ft (10 ft and 650 lb per leaf). The smooth running of motor gives the opener a greater life and durability.

An utility battery backup is always provided in case of power loss to cease the power loss. ALEKO GG1300 swing gate opener may be installed with low cost, low voltage wiring in remote areas also.

Aleko Dual Swing Gate Operator Gg1300 Ac/dc Back-Up Kit Acc2 Gg1300Back-Ap

Product Features

  • Access your gates through remote control or keypad
  • Smooth and soft start and stop function
  • Emergency Release key in case of power failure
  • Dual/Single gate running mode
  • Optional master and slave gate running
  • Adjustable opening/closing interval between master and slave gate
  • Stop/Reverse in case of obstruction during gate opening/closing
  • The force of the motor can be programmed
  • Optional photocell protection (not included)
  • Built in adjustable auto-close (programmable from 0-99 sec)
  • Digital display indicates the running situation and setting menu
  • Reliable electromagnetic limit switches improve adjustment of the 'open' and 'close' position

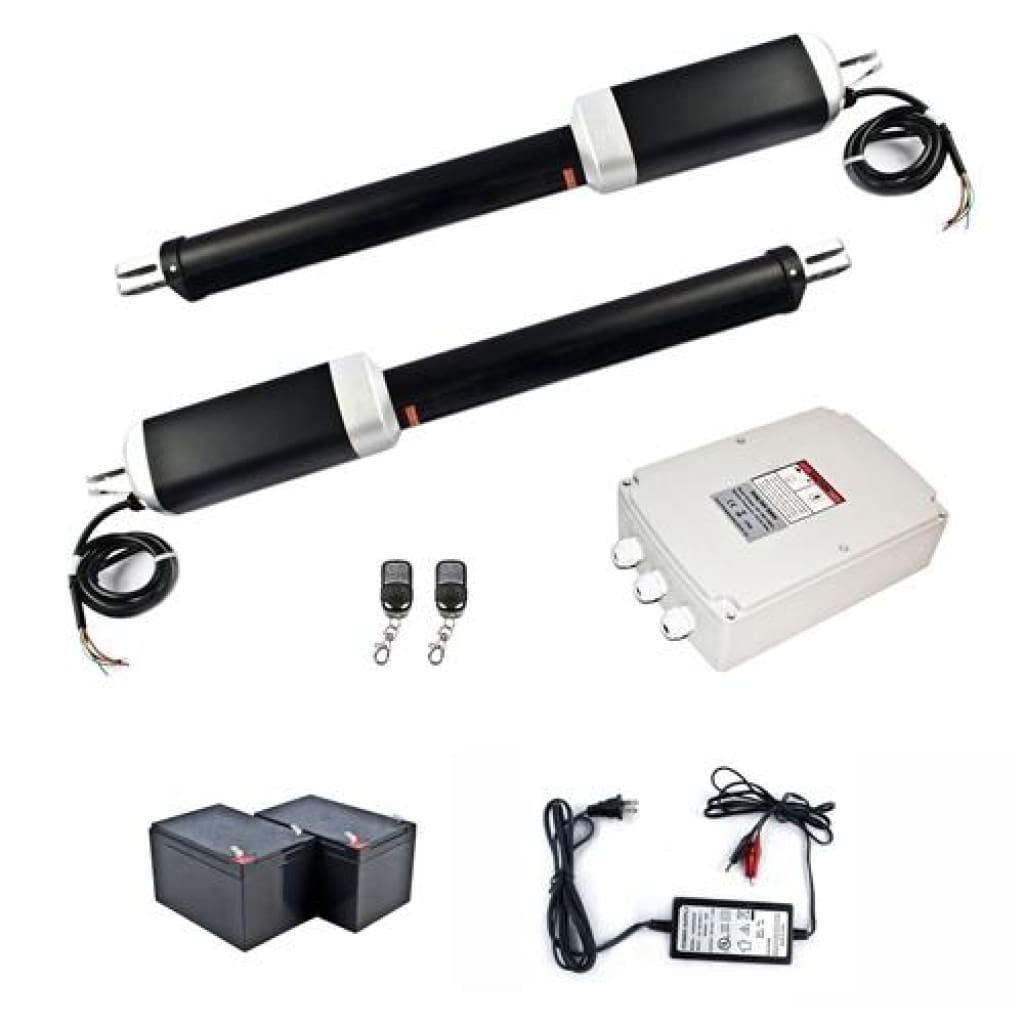

Package Includes

  • 2 (Two) Actuators
  • 1 (One) Control Box
  • 2 (Two) 8 1/2" x 11" Warning Signs
  • 2 (Two) Release key

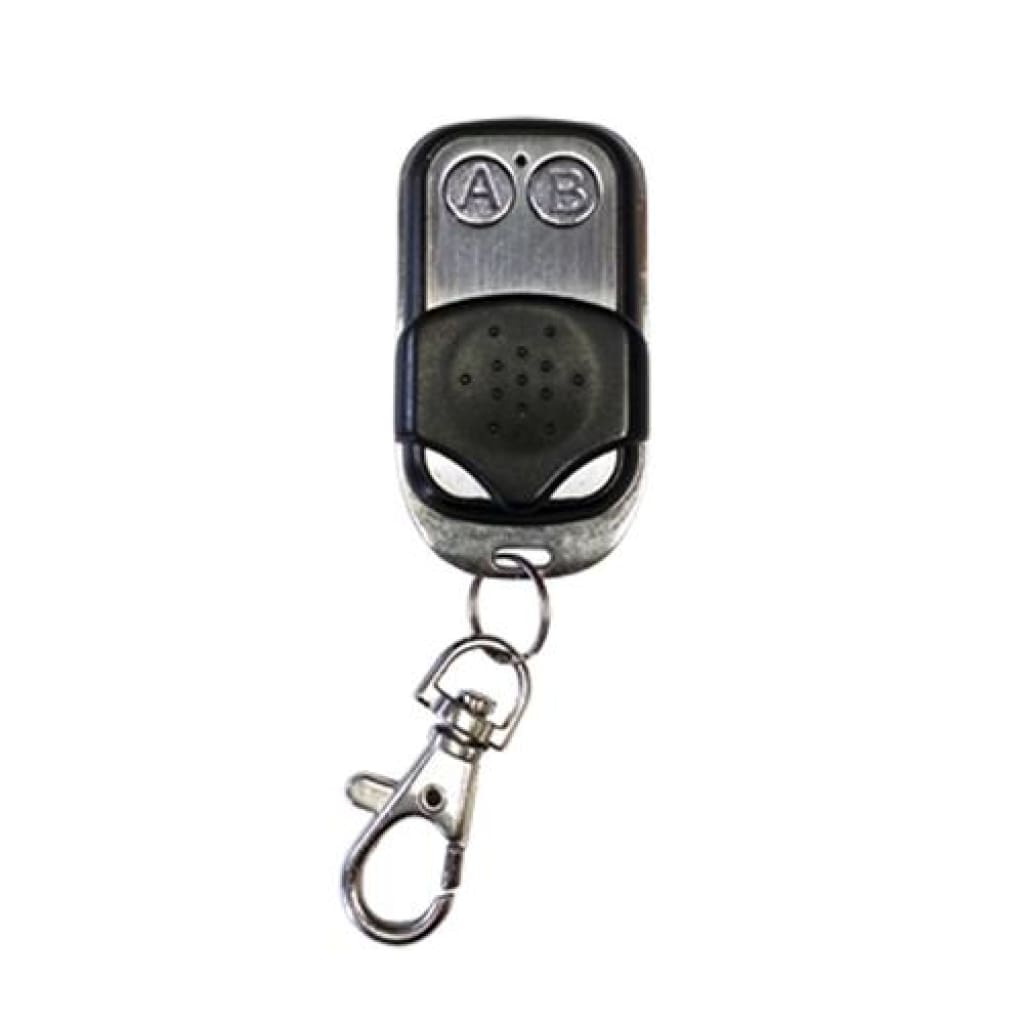

  • 2 (Two) 433MHz remotes LM122
  • 1 (One) ALEKO LM135 24V Adapter/Battery Charger
  • 1 (One) Set 2x12AH Batteries LM125(2x12AH)
  • 1 (One) ALEKO LM130 Battery Box (shape and colors may be vary) for 2x12AH Batteries
  • 1 (One) Set of accessories and mounting hardware for easy installation
  • 1 (One) User Manual with step by step installation instructions
  • Wire is not included

Technical Specifications

  • Motor: 24 V DC, 80W per actuator, 3A current
  • Power supply: 110V/60Hz (220V/50Hz - not included)
  • Actuator speed: 1.6 cm/second (5/8 inch/second)
  • Actuator travel: 385mm (15 3/4")
  • Max Weight of each gate panel: 300 kg (650 lbs)
  • Max Width of each gate panel: 3 m (10ft)
  • Auto-closing duration: programmable (from 0 to 99 seconds)
  • Ambient temperature: -22C(-4F) ~ +55C(+122F)
